Alpine ILX-W650E CarPlay/Android 7 inch screen

$599.00





Out of stock

Description

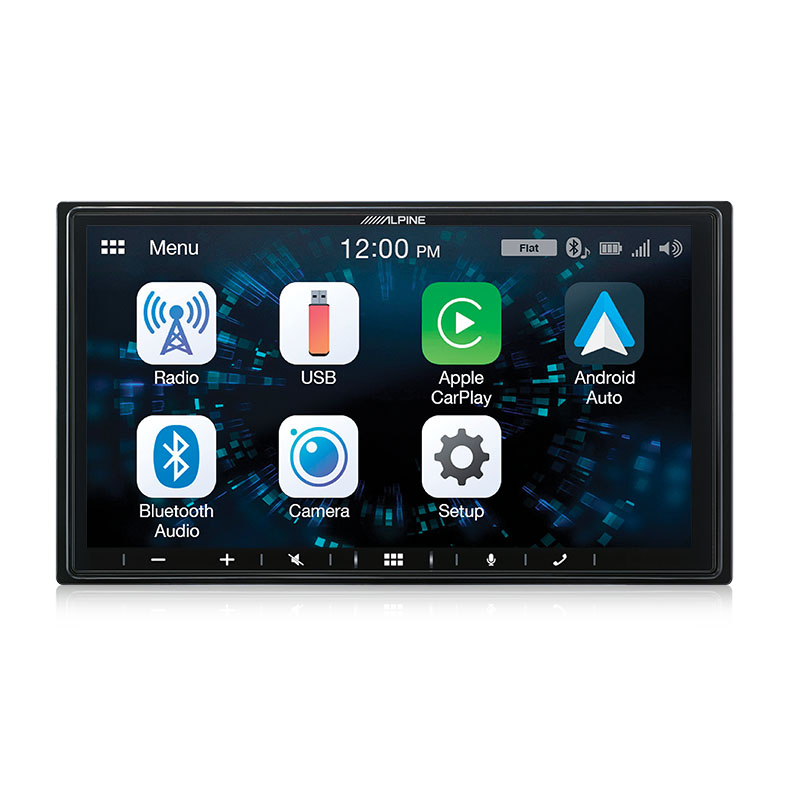

Alpine introduces the iLX-W650E 7” touchscreen display including Apple CarPlay and Android Auto. Crafted with a cutting-edge design and a ultra-shallow chassis allows for easier installations and fitment into a wider range of vehicles.

The innovative dual swipe user interface puts you in control of your music and keeps your eyes on the road. Using two fingers, simply swipe up or down to adjust the volume and swipe left or right to skip between tracks. Built-in connectivity gives you Apple CarPlay or Android Auto to use apps such as Waze Navigation, Google Maps and Spotify music via the convenience of voice command or touch. Plus, the dual camera input allows connection of a rear camera and a side or front camera making parking easier than ever before.

Whats more, the ultra-shallow chassis design makes way to add-on the compact KTA-450 Power Pack amplifier (sold separately) which mounts directly onto the back of the chassis. This revolutionary space saving design, delivers incredible power output and dynamic sound—making the PowerStack duo an industry first and honoured with the prestigious 2019 CES Innovation award.

Enquire Now

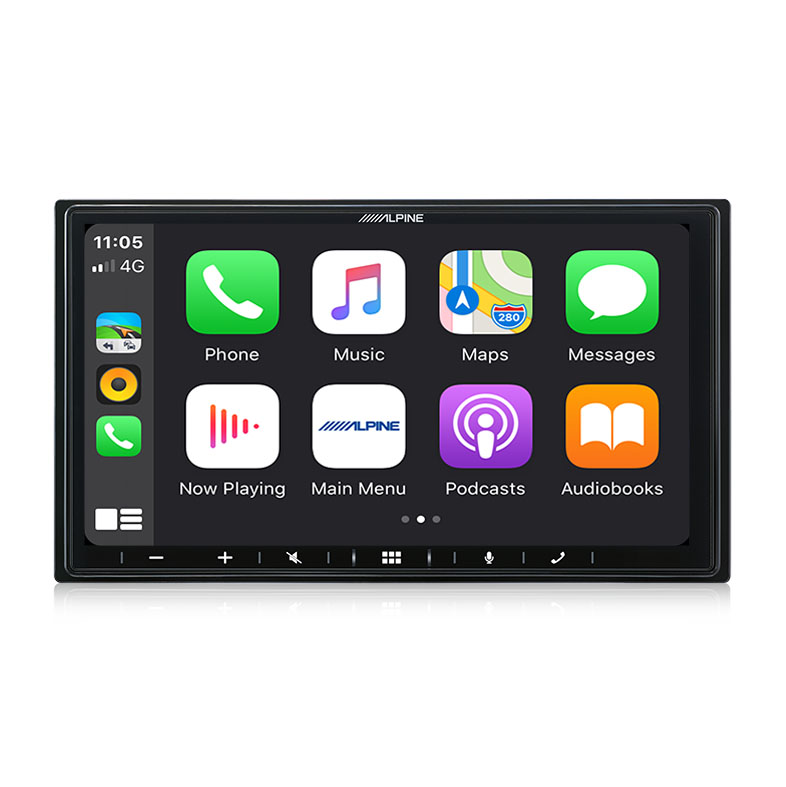

Apple CarPlay

Apple CarPlay brings your apps to life all through the display. Listen to your favourite music apps such as Spotify or Tidal, plus make calls, get directions with maps, receive messages and see your calendar all while using the display or voice control.

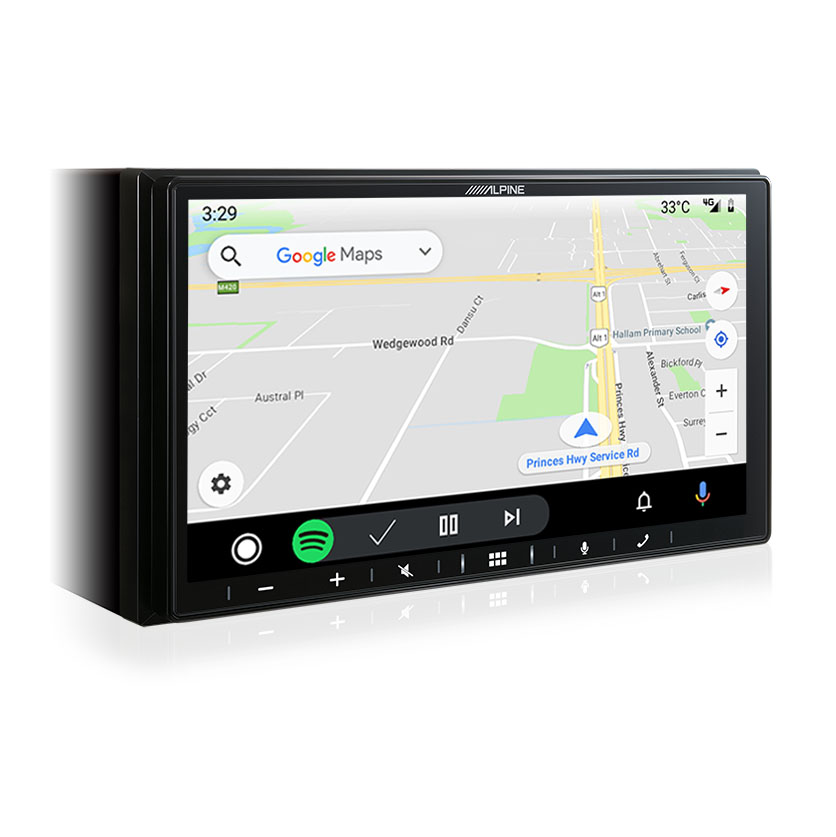

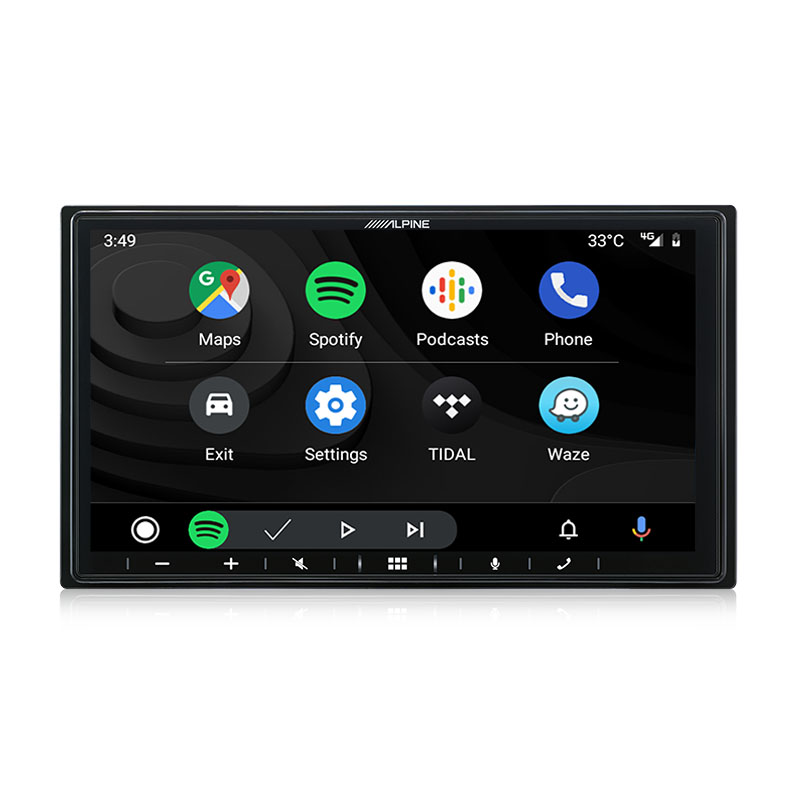

Android Auto

The convenience of Android Auto lets you bring the ever-expanding apps into the dash of your car. From either the display or voice command you can make calls, send and receive messages, play music apps or set a destination via Google Maps or Waze.

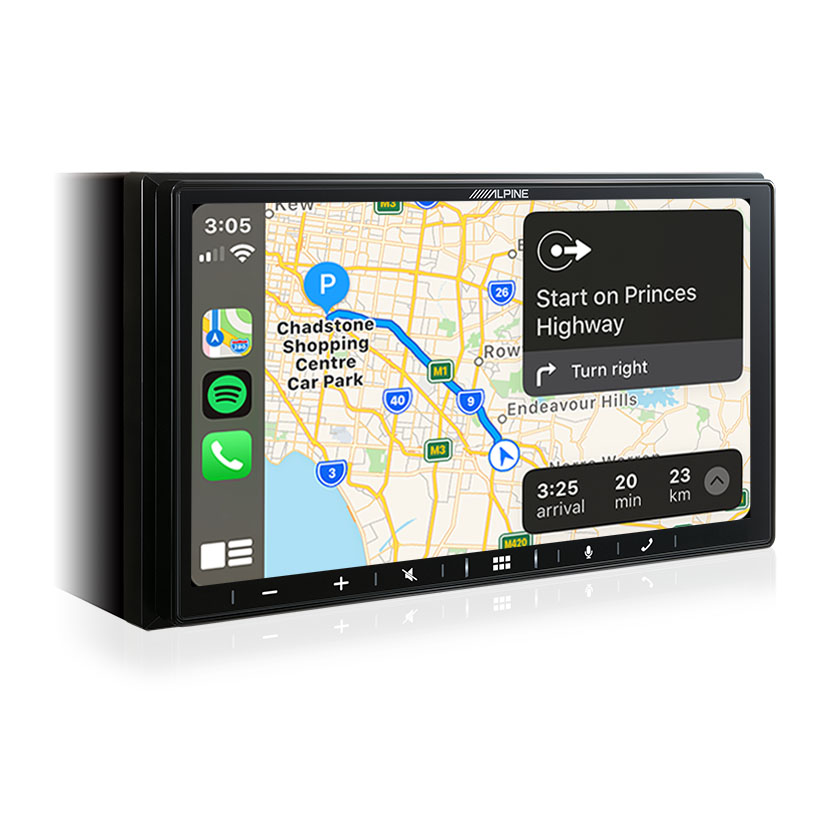

Smartphone Navigation

Wherever you go let Apple CarPlay show you the way. The simplicity of Apple Maps will guide you with turn-by-turn spoken directions, interactive 3D views, traffic conditions and estimated travel time all from your dashboard.

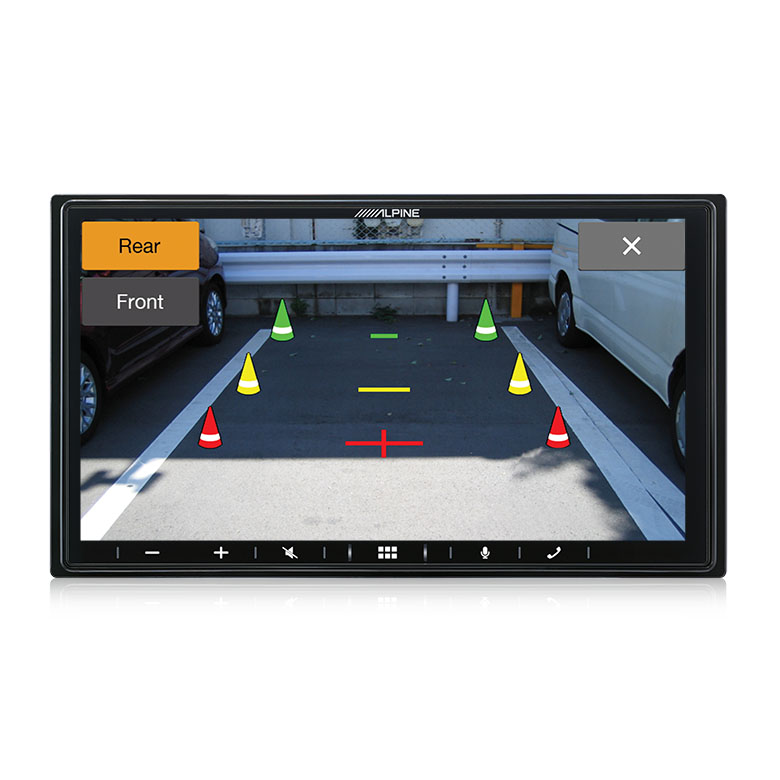

Dual Camera Input (RCA)

The iLX-W650E has the option to add-in dual cameras (sold separately) enabling the connection of a rear camera and an additional side or front camera for easier parking and safety.

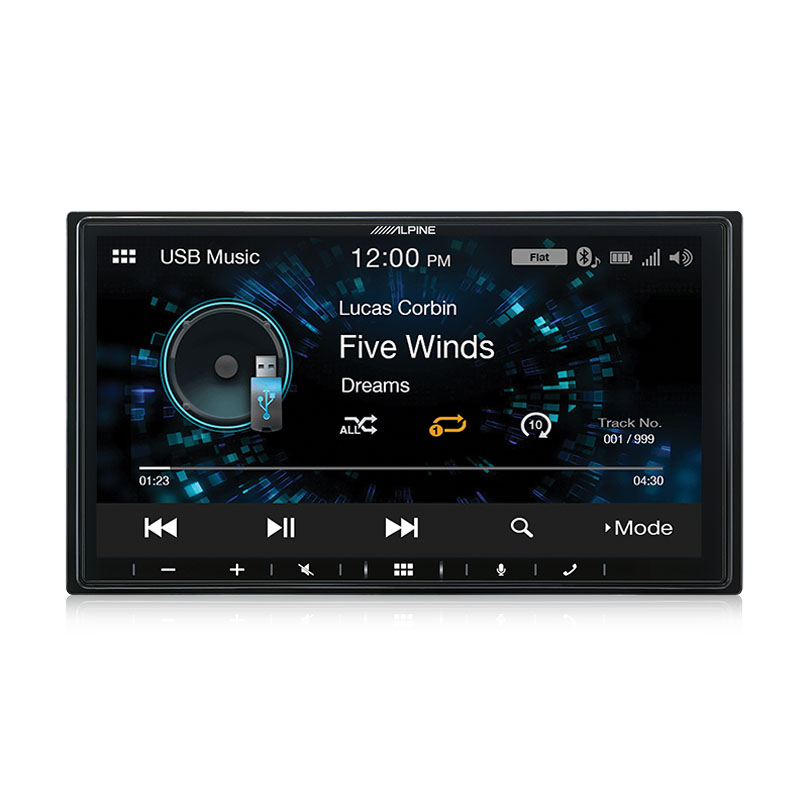

USB Audio

Includes a 3-AMP USB port for super-fast charging and provides a multitude of source options, such as iPod and iPhone or memory sticks and other devices to playback specific audio file types FLAC, MP3, WMA, AAC.

Features

Tuner

  • Memory Presets: Preset Stations (18 Total; 6 Stations for each band)
  • Memory: Auto Memory

BLUETOOTH®

  • Built-in BLUETOOTH® Module
  • Wide Band Speech Technology
  • HFP (Hands-Free Profile) Compatible
  • Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
  • Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
  • Advanced BLUETOOTH® Technology
  • Connection: SSP (Simple Secure Pairing) Supported
  • Phone Book: Phone Book Synchronisation
  • Device Name Display
  • Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
  • Redial Function
  • Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
  • DTMF (Touch-Tone) Function
  • Signal Strength Indicator
  • Battery Level Indicator
  • Menu Language Selection: 4 Languages

Made for iPod® / iPhone®

  • Music Playback
  • Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
  • Alphabet Search
  • Artwork Display
  • Direct Up / Down: Playlist / Artist / Album / Genre / Composer
  • M.I.X. (Shuffle) Play: Song, Albums, All
  • Repeat
  • Battery Charging

Connectivity

  • Works with Apple CarPlay (requires CarPlay enabled iPhone)
  • Works with Android Auto (Requires Android Auto enabled smartphone)

USB Media Connection

  • USB Connection: USB Extension Cable Included
  • Music Playback: FLAC/MP3/WMA/AAC/WAV compatible
  • Video Playback: MP4/AVI/WMV/MOV compatible
  • File / Folder Name Search
  • Folder Up / Down
  • M.I.X. Random Play
  • Repeat

Sound Tuning

  • Subwoofer Level Adjustment
  • Subwoofer Phase Select
  • 4V High Voltage PreOut
  • 5 Preset EQs
  • 9-band Parametric Equaliser front/rear/subwoofer
  • 5 Channel Digital Time Correction
  • Digital Crossover Setting
  • MediaXpander HD
  • Easy, Step-by-Step Sound Customisation

General

  • 7” Anti-Glare Capacitive Touch Display
  • Shallow Chassis Design (6.1cm depth)
  • Dual Swipe interface technology (excludes Apple CarPlay and Android Auto)
  • 3 PreOuts (4V, Front / Rear / Subwoofer)
  • Dual Camera Input via RCA (Rear and side or front cameras)
  • Clock
  • Auto Dimmer
  • Firmware Updatable
  • Power Antenna Lead
  • Remote Turn-On

Specifications

  • 3-AMP USB Charging and Input Port
  • 9-Band Parametric EQ / Crossover
  • 40W x 4ch Built-in Amplifier
  • 3 PreOuts (4 Volts)
  • PowerStack ready compatible with KTA-450 Power Pack Amplifier (sold separately)

Screen

  • Screen Size: 7″
  • LCD Type: Transparent Type TN LCD
  • Operation System: TFT Active Matrix
  • Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
  • Illumination System: LED Backlighting
  • Effective Number of Picture Elements: 99.99%

Max Power Output Ratings

  • Power Output: 4 x 16W RMS

FM Tuner

  • Tuning Range: 87.5 – 108.0 MHz
  • Mono Usable Sensitivity: 9.3 dBf (0.8 µV / 75 ohms)
  • 50dB Quieting Sensitivity: 13.5 dBf (1.3 µV / 75 ohms)
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • Stereo Separation: 35 dB
  • Capture Ratio: 2 dB

MW(AM) Tuner

  • Tuning Range: 531 – 1,602 kHz
  • Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

USB

  • USB Requirements: USB 2.0
  • Max. Power Consumption: 1,000 mA (CDP Support)
  • USB Class: Mass Storage Class, Play From Device
  • File System: FAT 16/32
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: ACC-LC format ′′.m4a′′ file
  • FLAC Decoding
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5 – 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
  • Total Harmonic Distortion (at 1kHz): 0.008%
  • DynamicRange(at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 100 dB
  • Channel Separation (at 1kHz): 85 dB

BLUETOOTH®

  • BLUETOOTH® Version: Bluetooth V4.2
  • Output Power: +4 dBm Max. (Power class 2)
  • HFP (Hands-Free Profile)
  • PBAP (Phone Book Access Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (Audio/Video Remote Control Profile)

Sound Tuning

  • Subwoofer Level Adjustment: 0 to +15
  • Subwoofer Phase Setting: 0° or 180°
  • HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
  • HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
  • HighPassFilter (Gain): -12 to 0 dB
  • LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
  • LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
  • LowPassFilter (Gain): -12 to 0 dB
  • Time Correction: 0.0 – 9.9ms (0.1ms step)
  • Parametric Equalizer (Band 1): 20 – 100 Hz
  • Parametric Equalizer (Band 2): 63 – 315 Hz
  • Parametric Equalizer (Band 3): 125 – 500 Hz
  • Parametric Equalizer (Band 4): 250 – 1k Hz
  • Parametric Equalizer (Band 5): 500 – 2k Hz
  • Parametric Equalizer (Band 6): 1k – 4k Hz
  • Parametric Equalizer (Band 7): 2k – 7.2k Hz
  • Parametric Equalizer (Band 8): 5.8k – 12k Hz
  • Parametric Equalizer (Band 9): 9k – 20k Hz

General

  • Power Requirement: 14.4 V. DC (11-16V allowable)
  • Pre Output Voltage (Before Clipping): 4 V / 10k ohms
  • Operating Temperature: -4°F to +140°F (-20°C to +60°C)
  • Maximum Power Output: 16W RMS  x 4
  • Audio Output Level
  • Preout (Front, Rear): 4V/10k ohms (max.)
  • Preout (Subwoofer): 4 V/10k ohms (max.)
  • Weight: 0.92 kg

Chassis Size

  • Width: 178mm
  • Height: 100mm
  • Depth: 60mm

Due to continuous product improvement, specifications and design are subject to change without notice.

The LCD panel is manufactured using an extremely high precision manufacturing technology. Its effective pixel ratio is over 99.99%. This means that there is a possibility that 0.01% of the pixels could be either always ON or OFF.

Additional information
Weight 4 kg
Dimensions 27 × 25 × 23 cm
Brand

Alpine

Screen Size

7 inch

Features

Android Auto & CarPlay

Navigation Type

Android Auto

,

CarPlay
