Helix IK W12 DVC2 12″ Subwoofer

$550.00

Now upgraded to new model IK W12 – Pics coming soon

Available on backorder

Category:
Description

Product parameters

  • Size:300mm | 12″
  • Driver Power | Watts RMS:300
  • Voice Coil x Impedance:2 x 2Ω
  • Unit Type:Single Driver
  • Sensitivity 2.83V/1m | dB:93
  • Installation Depth | mm:144
  • Recommended Sealed Box (L):22
  • Recommended Vented Box (L):30

Description

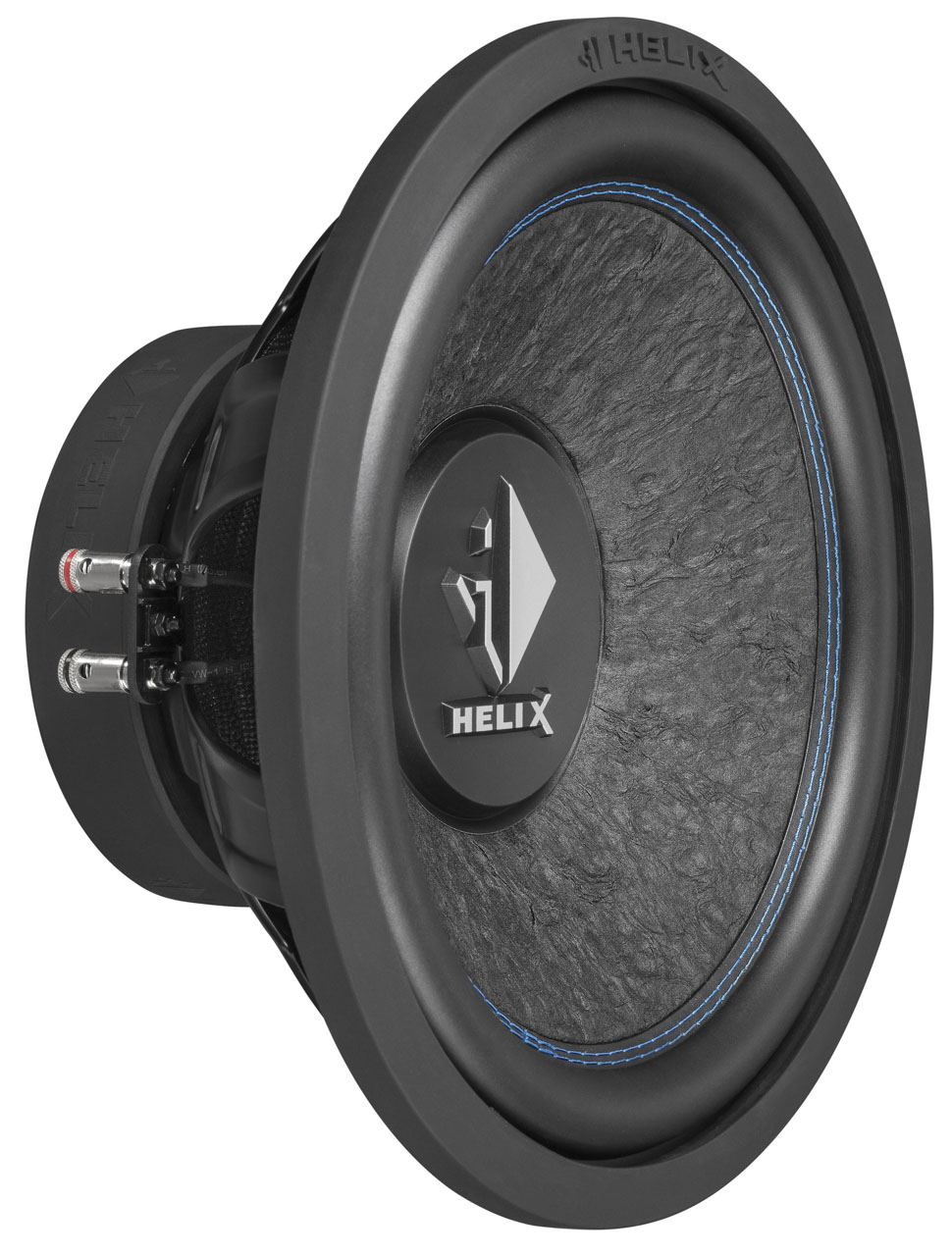

HELIX IK W12

Stunning bass performance out of compact dimensions

With the new KW chassis, we’re expanding our IMPACT subwoofer lineup, offering powerful drivers for use in very compact enclosures. Especially when it comes to the most efficient usage of available space in the vehicle regarding an individual enclosure design, these woofers create completely new installation possibilities without ever compromising the acoustic performance.

Clever down to the last detail

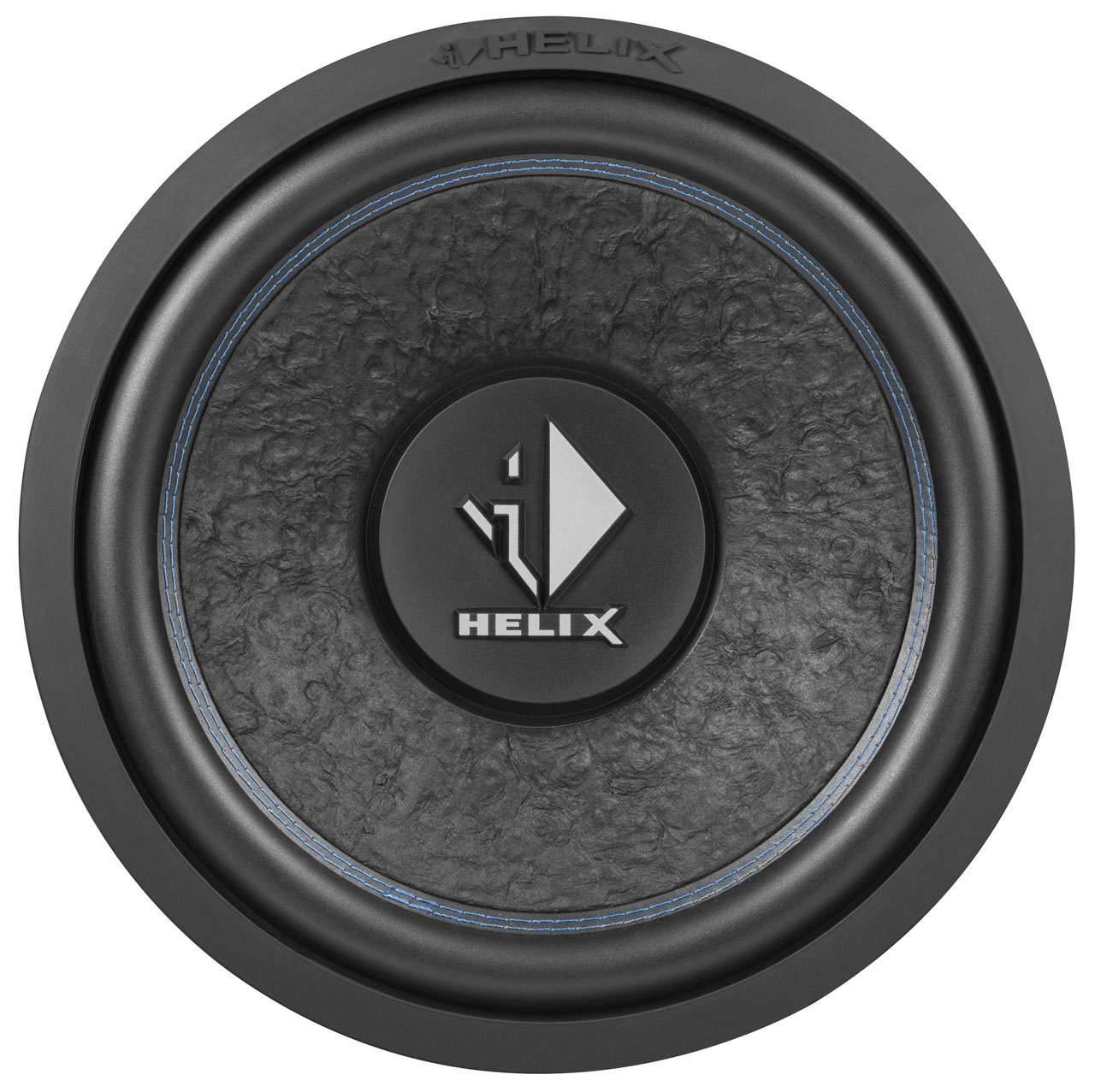

The extremely stiff cone made of hand-scooped paper fibers in connection with the heavy-duty driver system not only converts amplifier power easily and without compression effects into loads of sound pressure, but also scores sonically with subtle beats.

Flexible connection – 2 x 2 or 1 x 2 Ohms

The chassis are available as 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) version. Thus, these subwoofers always offers the right solution for every amplifier configuration to get the maximum performance out of it – whether mono, 2-channel or even multi-channel amplifier.

“All inclusive” for self-made enthusiasts

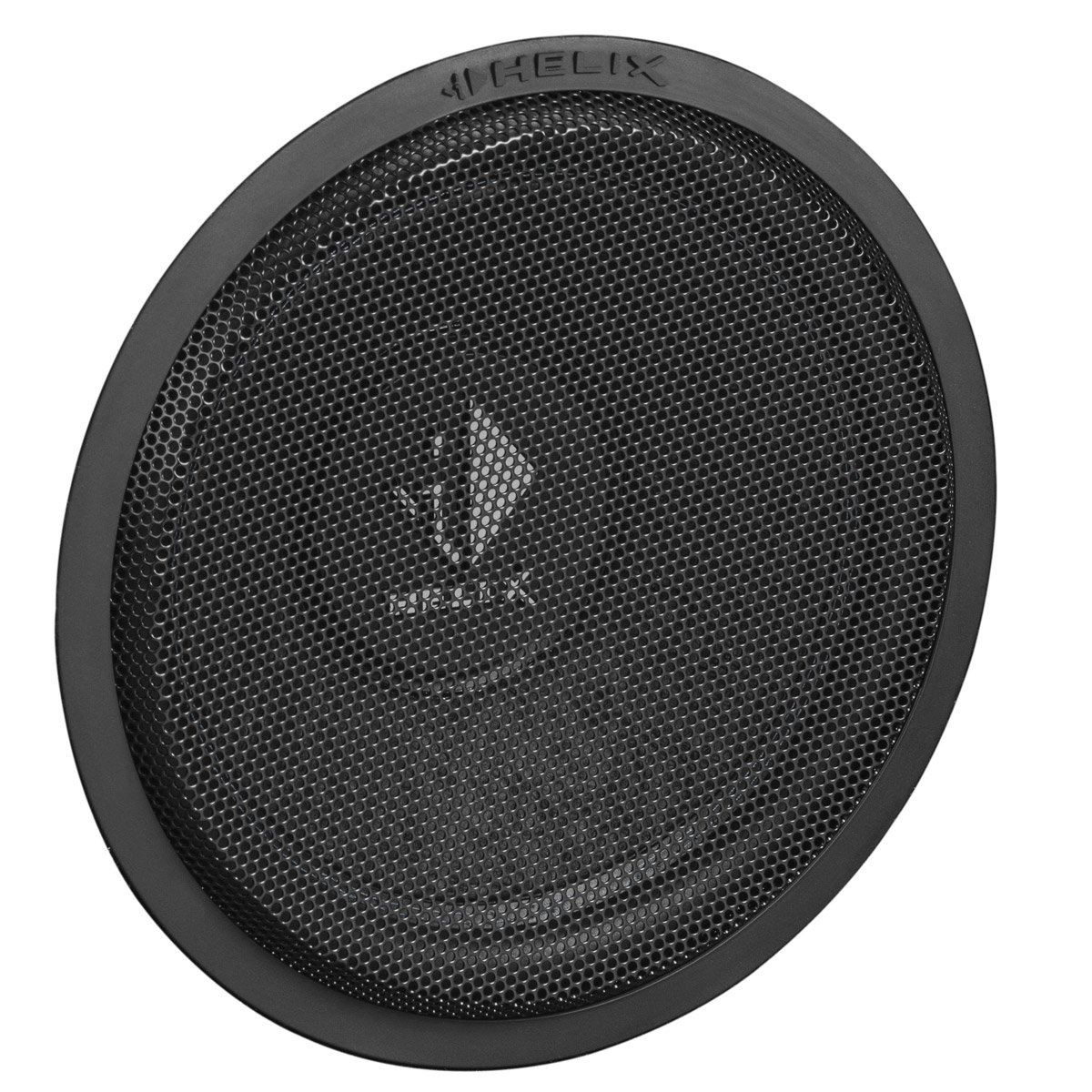

In addition, the solid protective grille and gasket are also included. For optimal bass performance in DIY installations you can find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency as well as DSP settings in our technical data sheet.

Features

  • 2 x 2 Ohms dual voice coil for flexible system configuration
  • Extremely stiff, hand-scooped paper cone for outstanding impulse response
  • Double ventilated voice coil for minimum compression effects and high power handling
  • Long-excursion rubber surround for highest mechanical rating
  • Solid push terminals
  • Powerful magnet system for compact enclosures
  • Rugged magnet cover with HELIX lettering for perfect magnet protection
  • Grille and gasket included in delivery

Technical data

IK W12-DVC2 – 2 x 2 Ohms
Power handling RMS / max. P300 / 600 Watt
Impedance Z2 x 2 Ω
DC resistance Re2 x 1.6 Ω
Resonance frequency Fs32 Hz
Mechanical Q factor Qms3.70
Electrical Q factor Qes0.46
Total Q factorQts0.41
ComplianceCms179 μm/N
Equivalent air volumeVas66 L
Force factor B*I13.7 Tm
SensitivitySPL93.0 dB @ 2.83V / 1m
90.0 dB @ 1W / 1m
Cone area Sd515 cm²
Moving mass Mms134 g
Cone material Hand-scooped paper cone
Mechanical resistance Rms7.33 kg/s
Voice coil diameterø50.8 mm
Voice coil winding height 24 mm
Max. linear excursion Xmax+/- 8.0 mm
Outer diameterø316 mm / 12.44″
Installation diameterø286 mm / 11.26
Installation depth 144 mm / 5.67″

Recommended enclosure volumes
Sealed box
Net volume 22 L
Lower limiting frequency (-3dB) 40 Hz
Recommended DSP settings“Self-Define” Highpass: 37 Hz / Q = 1.6;
EQ Filter: 90 Hz / Q = 1.5 / -3 dB

Vented box
Net volume 30 L
Port diameterø100 mm / 3.94″
Port area 78 cm²
Port length 28 cm / 9.84″
Port tuning frequencyFb39 Hz
Lower limiting frequency (-3dB) 39 Hz
Recommended DSP settings“Self-Define” Highpass: 36 Hz / Q = 1.3;
EQ Filter: 100 Hz / Q = 0.85 / -2 dB
Additional information
Weight 9 kg
Dimensions 35 × 35 × 20 cm
