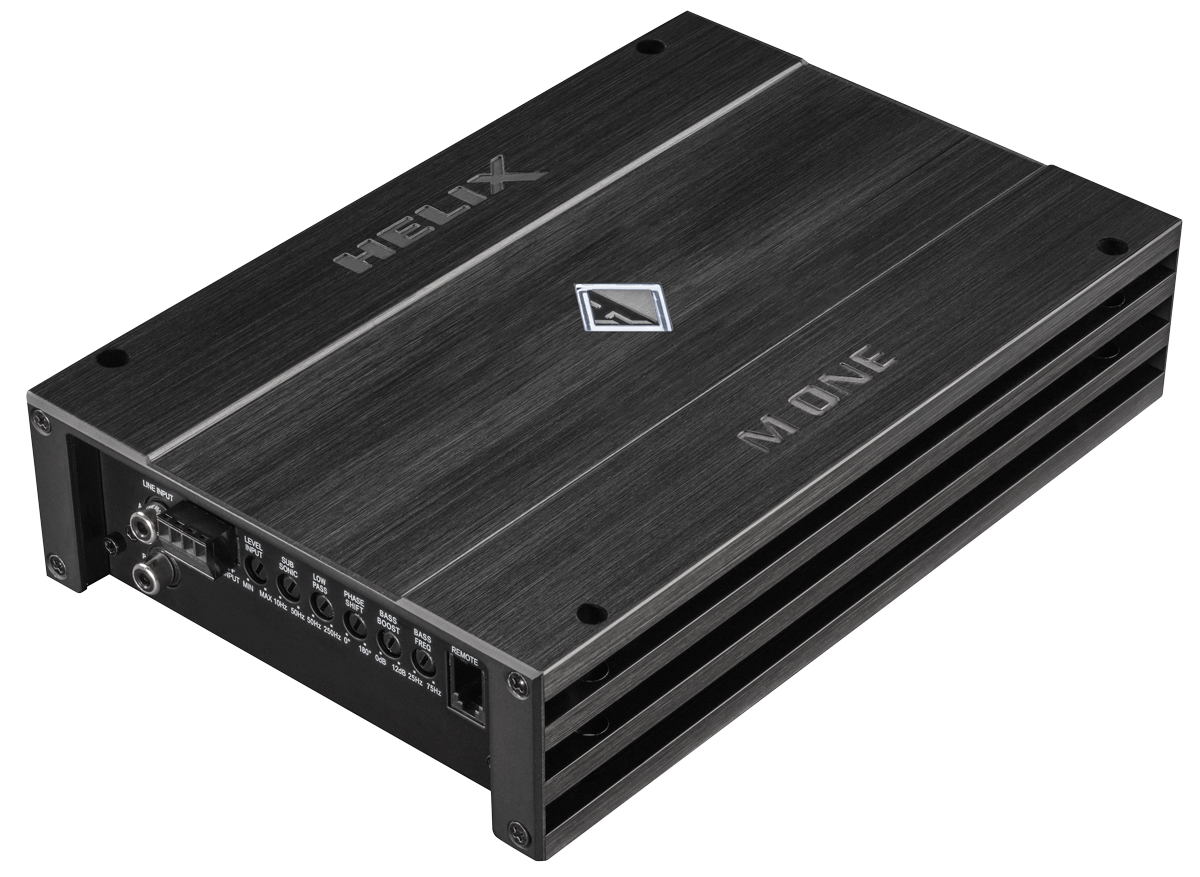

Helix M One mono Car Audio amplifier

$770.00

Category: Tags: , , ,
Description
  • Small, efficient and uncompromisingly stable - the M ONE is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.
Output power RMS / max.
- @ 4 Ohms1 x 240 / 480 Watts
- @ 2 Ohms1 x 410 / 820 Watts
- @ 1 Ohm1 x 600 / 1,200 Watts
- bridged @ 4 Ohms-
- bridged @ 2 Ohms-
Amplifier technologyClass D

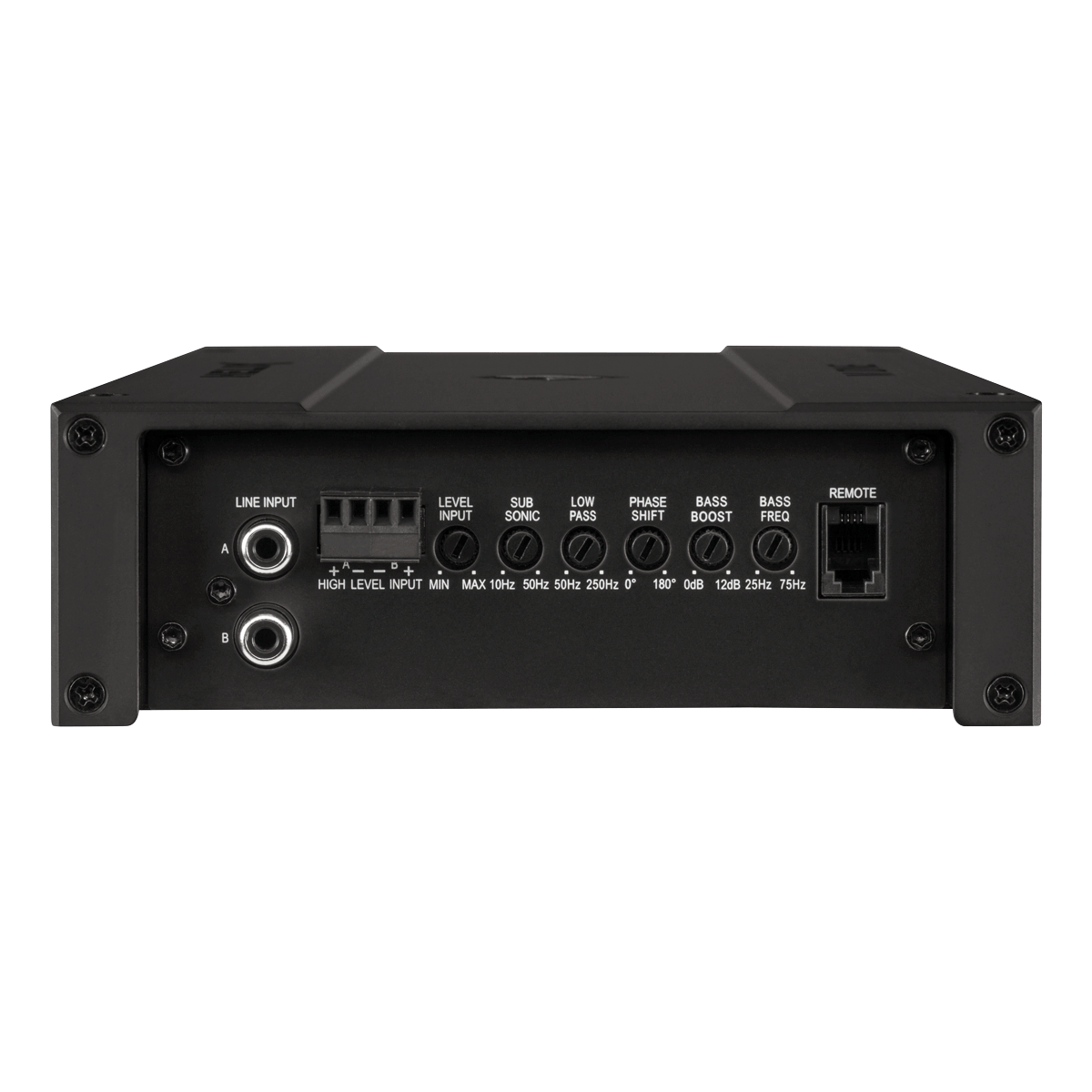

Inputs2 x RCA / Cinch
2 x Highlevel speaker input
1 x Remote In
1 x Remote control input
Input sensitivityRCA / Cinch 0.5 - 6 Volts
Highlevel 1.1 - 13 Volts
Input impedance RCA / Cinch20 kOhms
Input impedance highlevel13 Ohms
Outputs1 x Speaker output
Output voltage RCA / Cinch-
Signal converter for digital input-
Frequency response10 Hz - 250 Hz
Bass boost0 - 12 dB / 25 - 75 Hz
Highpass-
Lowpass50 Hz - 250 Hz adjustable
Bandpass10 Hz - 250 Hz adjustable
Subsonic10 Hz - 50 Hz adjustable
Phase0 - 180° adjustable
Slope high- / lowpass-
Slope subsonic / lowpass12 / 24 dB/Oct.
Signal-to-noise ratio digital input-
Signal-to-noise ratio analog input95 dB (A-weighted)
Distortion (THD)0.20 %
Damping factor100
Operating voltage10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current650 mA
Fuse2 x 35 A Maxi-fuse (APX)
Additional featuresActive, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control
Dimensions (H x W x D)50 x 230 x 154 mm /
2.00 x 9.06 x 6.06”



      • Small footprint Class D amplifier with high output power of 600 Watts RMS @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
      • Start-Stop capability down to 6V supply voltage
      • Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
      • Integrated, active crossover with lowpass, bass boost, subsonic and phase control
      • Extremely stable output stage with high-current power transistors and 1 Ohm stability
      • Bass remote control for volume adjustment
      • SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
      • Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency



      Special features:

      Smart highlevel input
      The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear - but not with the M ONE.
      The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.

      Start-Stop capability
      The switched power supply of the HELIX M ONE assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.

Additional information
Weight 6 kg
Dimensions 30 × 10 × 40 cm
