Name: Helix M ONE X Mono Amplifier
Brand: Helix
SKU: 40955
Price: 980.00 AUD
Availability: BackOrder

DescriptionFeaturesSpecifications

Small, efficient and uncompromisingly stable – the M ONE X is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE X a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel. And for even more output power, two M ONE X amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.

In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.

Small footprint Class D amplifier with up to 1,180 Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
Start-Stop capability down to 6V supply voltage
Smart highlevel input with ADEP circuit and Auto Turn-On function
Integrated, active crossover with lowpass, bass boost, subsonicand phase control
TwinPower Link for connecting two amplifiers in bridged mode
Bass remote control for volume adjustment
Low heat dissipation thanks to extraordinary efficiency

Special features:

Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear – but not with the M ONE X.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.

Start-Stop capability
The switched power supply of the HELIX M ONE X assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.

Power RMS ≤ 1% THD+N	Normal operation (One amplifier)	TwinPower Link (Two amplifiers)
– @ 4 Ohms	1 x 400 Watts	1 x 1,400 Watts
– @ 2 Ohms	1 x 700 Watts	1 x 2,060 Watts
– @ 1 Ohm	1 x 1,030 Watts	–
– bridged @ 4 Ohms	–	–
– bridged @ 2 Ohms	–	–
*Max. output power per channel:**	Up to 1,180 Watts RMS @ 1 Ohm
Amplifier technology	Class D

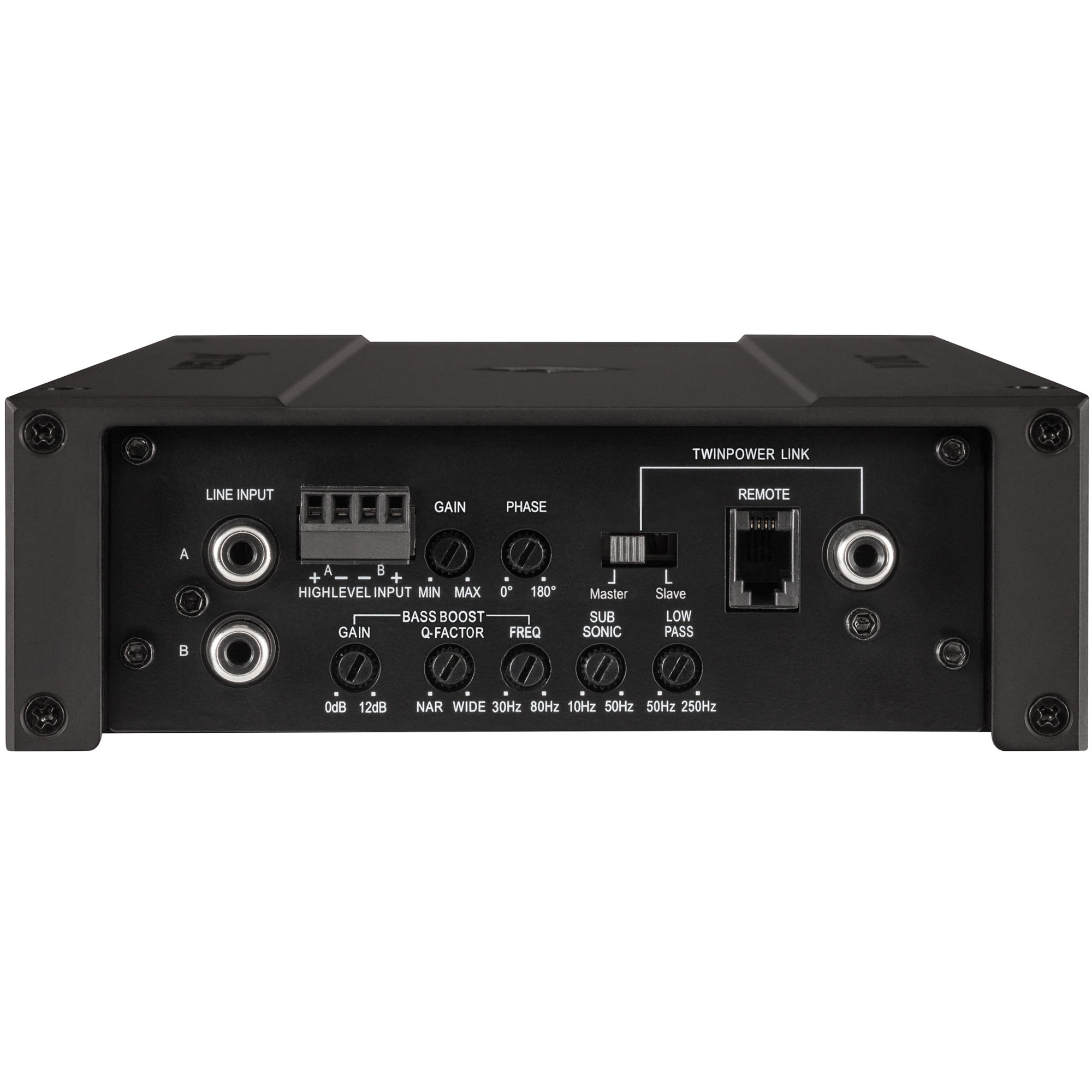

Inputs	2 x RCA / Cinch 2 x Highlevel speaker input 1 x Remote In 1 x Remote control input
Input sensitivity	RCA / Cinch 0.5 – 6 Volts Highlevel 1.1 – 13 Volts
Input impedance RCA / Cinch	20 kOhms
Input impedance highlevel	9 – 33 Ohms

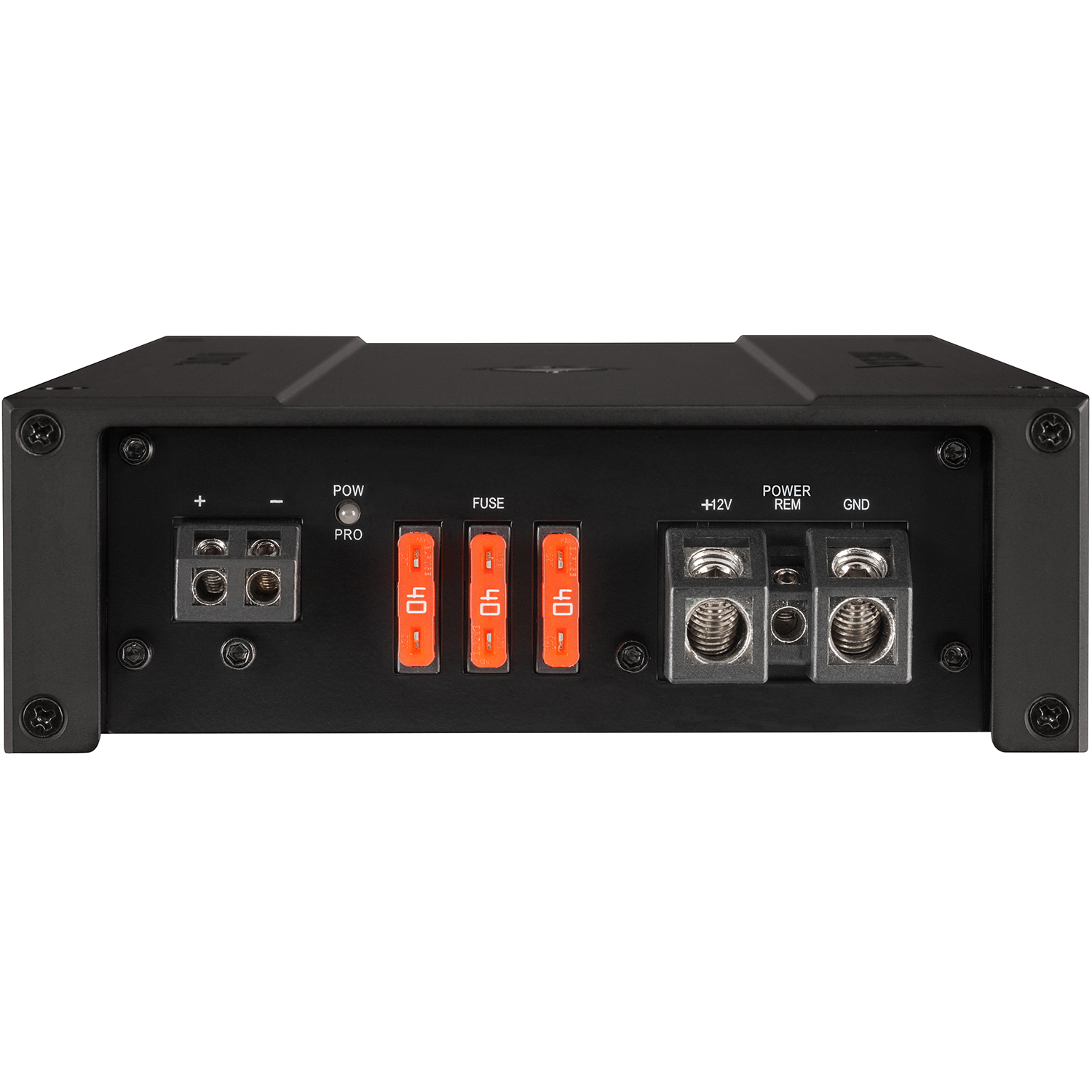

Outputs	1 x Speaker output
Output voltage RCA / Cinch	–
Signal converter for digital input	–
Frequency response	10 Hz – 250 Hz
Bass boost	0 – 12 dB / 30 – 80 Hz
Highpass	–
Lowpass	50 Hz – 250 Hz adjustable
Bandpass	10 Hz – 250 Hz adjustable
Subsonic	10 Hz – 50 Hz adjustable
Phase	0 – 180° adjustable
Slope high- / lowpass	–
Slope subsonic / lowpass	12 / 24 dB/Oct.
Signal-to-noise ratio digital input	–
Signal-to-noise ratio analog input	95 dB (A-weighted)
Distortion (THD)	0.20 %
Damping factor	150
Operating voltage	10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current	800 mA
Fuse	3 x 40 A Maxi-fuse (APX)
Additional features	Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control
Dimensions (H x W x D)	50 x 320 x 154 mm / 2.00 x 12.60 x 6.06”

* In typical applications as subwoofer amplifier

Weight

5 kg

Dimensions

40 × 22 × 8 cm

Brand

Helix

Number of Channels

Mono

Helix M ONE X Mono Amplifier
