70mm Stud Required

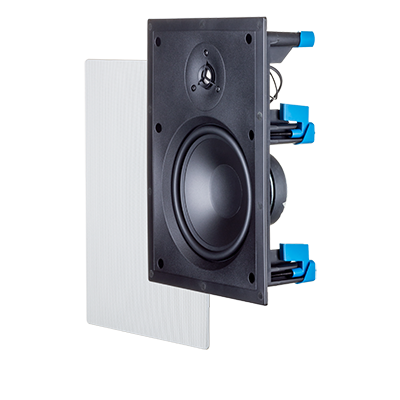

Paradigm CI Home H65-IW
$279.00
Sold Individually
Description
Paradigm CI Home H65-IW
OverviewSpecsDownloads
CI Home H65-IW Specifications
| Design | 2-driver, 2-way in-wall, ABS chassis & mounting clamps |
| Crossover | 2nd-order electro-acoustic at 2.5 kHz |
| Frequency Response On-Axis | ±2 dB from 70 Hz – 20 kHz |
| Frequency Response 30° Off-Axis | ±2 dB from 70 Hz – 18 kHz |
| High Frequency Driver | 3/4″ (1.9cm) PTD™ dome |
| Mid/Bass Frequency Driver | 6.5″ (16.5cm) mineral-filled polypropylene cone |
| Low Frequency Extension | 55 Hz |
| Sensitivity Room / Anechoic | 89 dB / 85 dB |
| Impedance | Compatible with 8 ohms |
| Suitable Amplifier Power Range | 15-90 W |
| Maximum Input Power | 60 W |
| Finishes | White, paintable grille |
| Weight | 3.5 lbs. (1.6 kg) |
| Overall Dimensions | 11.125″ (28.3cm) Height 8.125″ (20.6cm) Width 3.375″ (8.6cm) Depth |
| Cut-Out Dimensions | 10.125″ (25.7cm) Height 7.0625″ (17.9cm) Width |
| Minimum Mounting Depth Depth required is the distance between 1/2″ drywall, or similar material. | 2.75″ (7.0cm) |
| Specifications are subject to change without notice. |
Additional information
| Brand | Paradigm |
|---|---|
| Impedance | 8ohms |
| Speaker Type | In-Wall |
| Wall Frame Size | 70mm Stud Required |
