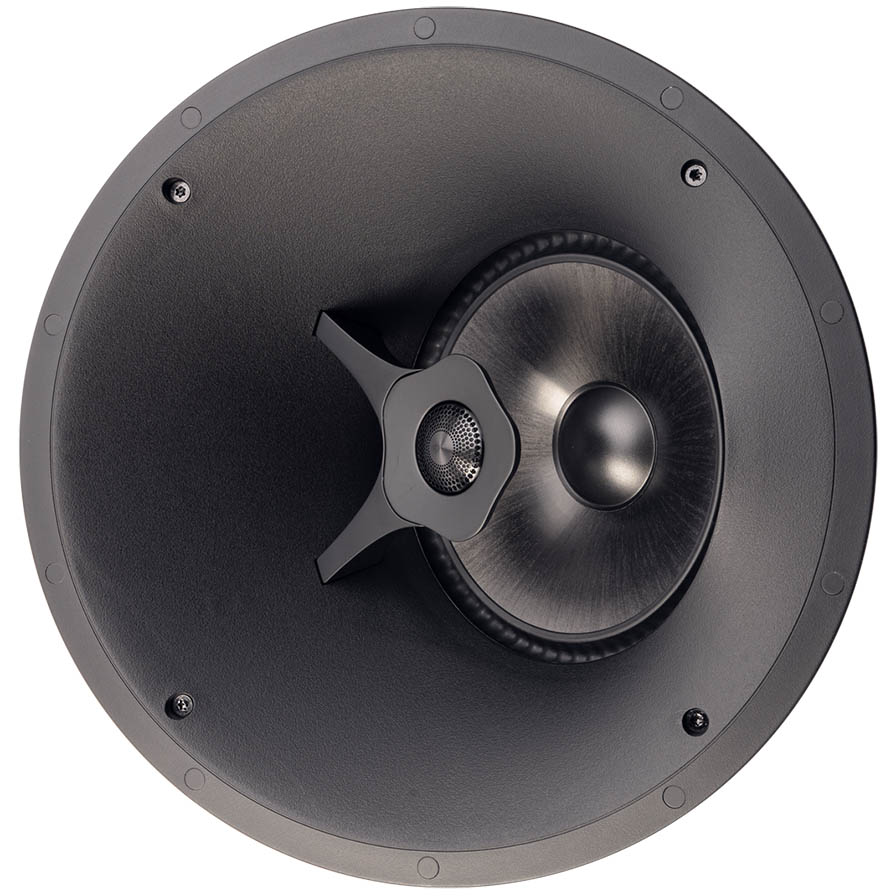

Paradigm CI Pro P80-A V2 8″ 30 Degree In-Ceiling Speaker

$779.00

Priced Individually, Paradigm CI Pro 8″ 2-way In-ceiling round, 30°-Angled Guided Soundfield™ Speaker

Category:
Description

CI Pro P80-A v2

The Custom Installer’s Smarter Choice.
The CI PRO Series is manufactured in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality.

The Custom Installer’s Smarter Choice

The CI PRO Series is manufactured in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality.

CI Pro P80-SM V2

8" Dual Directional Soundfield / Stereo Single In-Ceiling Speaker

CI Pro P65-R V2

6.5" 2-way In-Ceiling Speaker

CI Pro P65-RX V2

6.5" 2-Way Outdoor In-Ceiling Speaker

CI Pro P80-R V2

8" 2-way In-Ceiling Speaker

CI Pro P80-RX V2

8" 2-way Outdoor In-Ceiling Speaker

CI Pro P80-A V2

8" 2-way 30 Degree Aimable In-Ceiling Speaker

CI Pro P65-IW V2

6.5" 2-Way In-Wall Speaker

CI Pro P80-IW V2

8" 2-way In-Wall Speaker

CI Pro P1 LCR V2

Dual 5.5" 2-way Enclosed In-Wall Speaker

CI Pro P3 LCR V2

2-Way Dual 5.5" Woofers + Dual 5.5" Passive Radiators, Enclosed In-Wall Speaker

CI Pro P5 LCR V2

3-Way Dual 6.5" Woofers + Dual 6.5" Passive Radiators + 6.5" Midrange Enclosed In-Wall Speaker

Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.

CARBON-X™ Cones

Paradigm’s exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

Advanced Shock-Mount™ System

mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Patented† Active Ridge Technology (ART™) surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

Advanced Features for a Solid and Secure Installation



FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.



Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.

Pocketed screw holes help to hold the drill steady, making installation a snap.

Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

Specifications

DESIGN2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfield System SHOCK-MOUNT™ System, Nylon Reinforced Baffle
CROSSOVER2nd-order electro- acoustic at 2.0 kHz
FREQUENCY RESPONSE ON-AXIS±3 dB from 58 Hz - 22 kHz
HIGH FREQUENCY DRIVER1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
MID/BASS FREQUENCY DRIVER8” (20.3cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets
LOW FREQUENCY EXTENSION39 Hz
SENSITIVITY ROOM / ANECHOIC93 dB / 89 dB
FREQUENCY RESPONSE 30° OFF-AXIS±3 dB from 58 Hz - 18 kHz
SUITABLE AMPLIFIER POWER RANGE15-110 W
MAXIMUM INPUT POWER80 W
IMPEDANCECompatible with 8 ohms
WEIGHT6.6 lbs (3 kg)
FINISHESWhite, paintable grille, black speaker
CUT-OUT DIMENSIONS11-7/16” (29.1cm) dia.
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)
5-5/8” (14.3cm)
DIMENSIONS HXWXD (INCLUDES GRILLE).12-5/8” (diameter) x 6-1/8” (depth) (32.0cm x 15.5cm)

Specifications are subject to change without notice.
