CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils.

Klippel Verified

To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test: - Klippel DA-2 (Designed) - Klippel PM-8 (Developed) - Klippel QC (Tested) Rockford Fosgate has made the investment in Klippel to deliver the best possible speakers to our customers

ICC Crossover

The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.

.

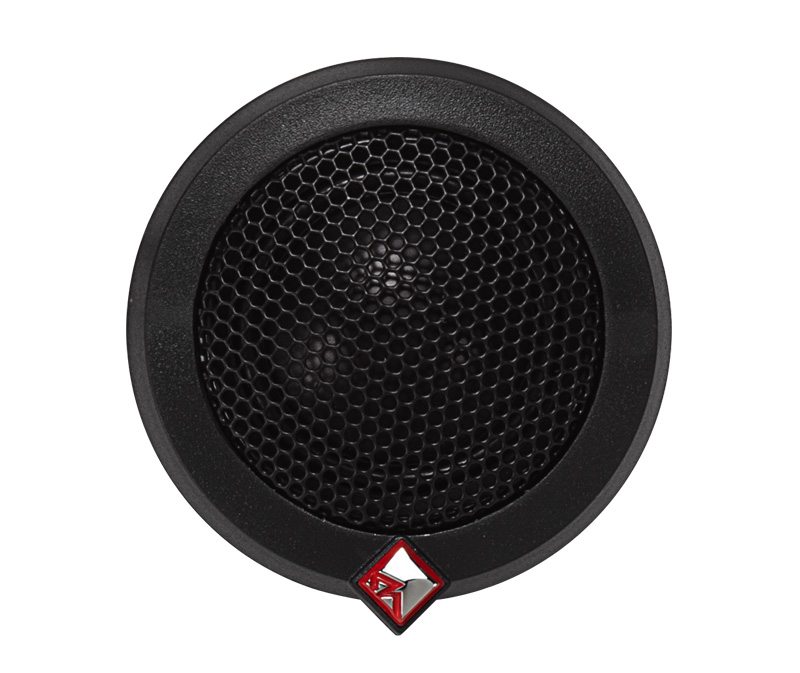

DDC™ Tweeter Mounting

Every aspect of our new DDC™ Tweeter design has been completely re-engineered to allow for maximum ease of installation and fitment. This optimized patent pending design provides concentric clamping pressure around the perimeter of the mounting hole.

The "mounting cups" on the new design are in fact not "cups" at all, but rather unobtrusive "clamps" that quickly and easily mount in a standard 1-5/4" (45mm) hole saw opening with a single concentric center screw securing with balanced pressure to both faces of the mounting surface. From there, the tweeter simply snaps into place and is secured by a snap on trim ring. Removal is easy if needed. The protective grille on the tweeter is non-removable and an integral part of the design

VAST Surround (speakers)

Rockford Fosgate's proprietary surround technique, VAST, provides up to a 25% increase in the speakers effective radiating cone area without complicated installation issues. This design alters the typical design and manufacturing technique by eliminating the large flat glue surface area (the landing), which allows the surround to be shifted for increased cone area. In turn, both nominal efficiency and maximum output capabilities are dramatically improved.

The new patent-pending VAST™ technique is a result of combining a unique design concept with precise manufacturing to provide up to 25% more effective radiating cone area.

FlexFit Basket - Speaker

The slot mounted frame pattern of the FlexFit basket utilizes slots (where feasible) instead of single screw sized holes. This allows slight adjustment of the speaker when mounted
