Product updates are changing regularly, some Car Solutions may say out of stock. BUT- Please confirm via email or we can design a system that is equal too or better for the same price, so it is best to contact us. Please understand it's hard to guarantee exact delivery.
Nissan NP300 Navara Subwoofer & amplifier Upgrade Smooth and Warm dual 10″ pack From: Original price was: $4,480.00.$3,667.00Current price is: $3,667.00.
Rockford Fosgate P500X2 Punch 2 channel Amplifier
$829.00
The Punch P500X2 is a special order item and can take several months from placement of order as this is not a normal stocked item in Australia
Available on backorder
Description

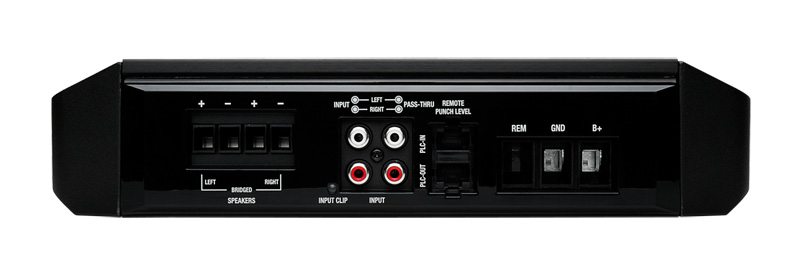

The Punch P500X2 is a 2-channel stereo amplifier capable of producing 250 Watts into each channel at 2-Ohms. The P500X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.
FEATURES AT A GLANCE
- High level input capable with Auto Turn-On circuit
- RCA pass-thru outputs
- 12dB/octave Butterworth crossover
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- On-board Punch EQ with +18dB boost @ 45Hz
- Cast aluminum heatsink
- Muted turn on
- Stealth top mounted control panel
- Short circuit protection
- Over current protection
- 1 Year Warranty
Cta-2006 Compliant
Number of Channels
2
Total Power
(Sum of Rated Power)
(Sum of Rated Power)
500 Watts
Rated Power
(RMS Continuous Power)
(RMS Continuous Power)
150 Watts x 2 @ 4-Ohm
250 Watts x 2 @ 2-Ohm
500 Watts x 1 @ 4-Ohm Bridged
250 Watts x 2 @ 2-Ohm
500 Watts x 1 @ 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)
(PVC/PowerCube®)
223 Watts x 2 @ 4-Ohms 0° Res
365 Watts x 2 @ 2-Ohms 0° Res
365 Watts x 2 @ 2-Ohms 0° Res
Bridgeable
Yes
Frequency Response
20Hz to 20kHz +/- 1.0dB
Input Sensitivity
150 mV – 12 V
Circuit Topology Class
Class A/B
Efficiency (average)
73% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
2-Ohm: <1.0%
Signal Input
Hi/Low level: 1 RCA pair
Signal Output
Low level: 1 RCA pair
Tone Controls
Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Punch EQ2 Treble: 0dB to +12dB @ 12kHz
Function depends upon LP/AP/HP switch position
Punch EQ2 Treble: 0dB to +12dB @ 12kHz
Function depends upon LP/AP/HP switch position
Crossover Controls
High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
All-Pass: Yes
Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
All-Pass: Yes
Remote Controls
Optional Punch Level Control (PLC2) Ready
Visual Indicators
Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Input Clip LED3
Output Clip LED1,2,3LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
4 AWG
Power Input Connector
Captive C-Clamp
Speaker Wire Gauge
8 AWG to 18 AWG
Speaker Output Connector
Captive C-Clamp
Cooling
Convection
Heatsink
Operating Voltage
9 – 16 VDC
Recommended Fuse
(not included)
(not included)
80 A
Average Current Draw (13.8V Music)
40 A
Max. Current Draw (13.8V Sinewave)
80 A
Suggested Alternator
75 A
Included In The Box
Dimensions (H x W x D)
2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
6.05 x 19.71 x 33.73 (cm)
Shipping Weight
12.3 Lbs. (5.57 Kg.)
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 32 × 24 × 7 cm |
| Brand | Rockford Fosgate |
| Number of Channels | 2 channel |
