CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils.

Klippel Verified

To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test: - Klippel DA-2 (Designed) - Klippel PM-8 (Developed) - Klippel QC (Tested) Rockford Fosgate has made the investment in Klippel to deliver the best possible speakers to our customers

PTC Protection

Allows tweeter protection with a bypass resistor for 100% run-time

.

IDHS™ T3/T4 Inductive Damping Heat Sink

Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-magnetic force). Also radiates heat to reduce voice coil temperature.

VAST Surround (speakers)

Rockford Fosgate's proprietary surround technique, VAST, provides up to a 25% increase in the speakers effective radiating cone area without complicated installation issues. This design alters the typical design and manufacturing technique by eliminating the large flat glue surface area (the landing), which allows the surround to be shifted for increased cone area. In turn, both nominal efficiency and maximum output capabilities are dramatically improved.

The new patent-pending VAST™ technique is a result of combining a unique design concept with precise manufacturing to provide up to 25% more effective radiating cone area.

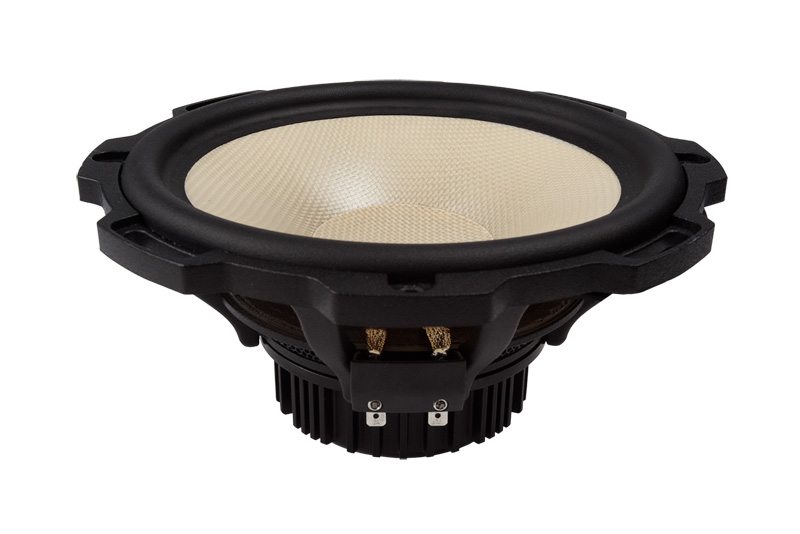

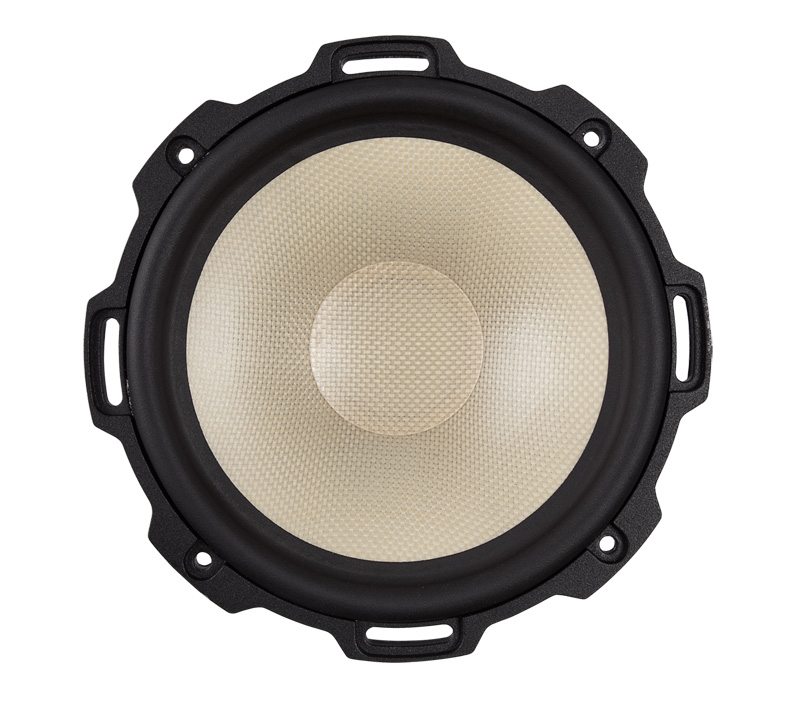

FlexFit Basket - Speaker

The slot mounted frame pattern of the FlexFit basket utilizes slots (where feasible) instead of single screw sized holes. This allows slight adjustment of the speaker when mounted
