Yamaha

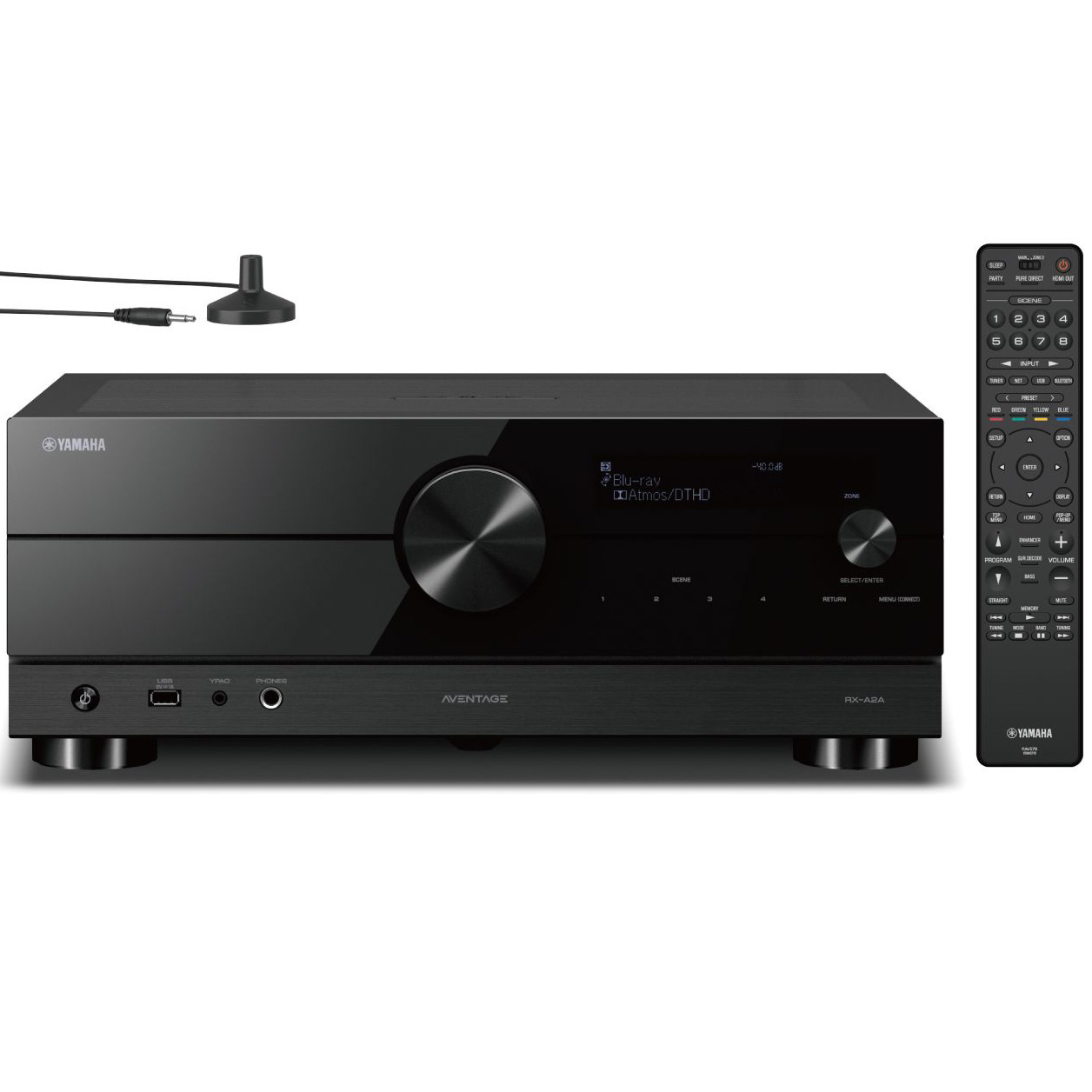

Yamaha RX-A2A Aventage Dolby ATMOS AV Receiver

$1,599.00

A2A – 7.2 ch AVENTAGE with CINEMA DSP 3D, HDMI™ 7-in/1-out, Special A.R.T technology.

7.2 Channel powerful surround sound with Zone2
Wi-Fi, Bluetooth®, Airplay 2, Spotify Connect and MusicCast multi-room audio
Dolby Atmos® with height virtualization via FW Update
HDMI™ 7 in/1 out, HDR10+, Dolby Vision
Dedicated gaming function(ALLM,VRR,QMS,QFT) via future update
Voice control with Alexa and Google Assistant devices. *Availability varies by region
MusicCast Surround capable – add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound
YPAO™-R.S.C. (Reflected Sound Control) sound optimisation
4 Year Warranty with first year Replacement + 1 more year via Registration / 5 year Warranty

In stock

Category: Surround Receivers

Description

BREATHTAKING SOUND

Dolby Atmos® with Height Virtualizer*

Puts you at the center of the action by positioning sounds to different points in your room, including from above. *This function is available via FW update.

For those without in-ceiling or upward firing speakers in their system, Dolby Atmos with Height Virtualization Technology simulates the Atmos experience with forward facing-drivers. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.

Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio – including Dolby Surround upmixer for legacy content.

*This function is available via future update.

Learn More >

CINEMA DSP 3D for Movie, Music and Games
Incorporates extensive sound field data from world famous concert halls and music clubs to reproduce the same big theater acoustics within the walls of your home.

This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies, and enter a world of profound theater sound.

Learn More >

DTS:X®

DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favorite movies.

Learn More >

Music Enhancer
Restores compressed audio so it sounds the way it was intended to be heard.

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

Learn More >

High Slew Rate Amplifier
Responds to rapid changes in input level for precise and stable signal transmission.

It would contribute a precise signal transmission, especially suitable for high resolution audio signal. Generally high slew rate amplifier causes unstable signal transmission, Yamaha’s newly design circuit achieves high slew rate with stable signal transmission.

Learn More >

Crafted for Clarity
Anti Resonance Technology (A.R.T.), a fifth foot in the center of the unit, provides additional stability from external vibrations. Enjoy crystal clear, solid sound.

Anti Resonance Technology Wedge

The Anti Resonance Technology (A.R.T.) Wedge is a fifth foot in the center of the chassis unit base. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers — providing dynamic sound and focused, accurate reproduction.

Learn More >

MOVIES AND GAMES LIKE NEVER BEFORE

HDR10+*
Provides deeper contrast and more realistic images that stay true to the creators’ intent.

HDR10+ signals not only dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis, it also provides, in a small amount of metadata, the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator’s intent.

Learn More >

4K/120 Hz*
Enables a higher resolution and refresh rate, giving you a smoother and more realistic viewing experience.

4K/120Hz enables ultra-fast motion UHD images to be crisp and razor sharp; allowing high-performance gaming, sport and action movies to benefit significantly.

*This function is available via future update.

Learn More >

Gaming-dedicated Functions (ALLM,VRR,QMS,QFT)*
Ensure seamless motion and transitions to enhance your performance.

Enhanced gaming and media features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM) allows enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity. Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay. Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank frames before content is displayed. Quick Frame Transport (QFT) reduces latency for smoother no-lag gaming, and real-time interactive virtual reality.

*This function is available via FW update.

Learn More >

HDMI Multiple Input with Latest Technology*
Multiple HDMI input will equally support the latest HDMI technology to allow next-gen gaming consoles can be connected at the same time.

*These functions are available via firmware update.

SIMPLE TO SET UP, SIMPLE TO USE

MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.

Use your smartphone or tablet together with the MusicCast CONTROLLER app to operate the AVR and change settings quickly and easily. The same Controller app functions as a remote control for all your MusicCast-compatible devices as well as full multi-room audio controls.

Learn More >

AV Setup Guide App
Offers expert guidance through installation, cable connections, and various other settings.

No worries, no confusion. Use this special app to receive expert set up assistance for your AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.

Learn More >

Voice Control Systems
Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device.

*Availability varies by region.

Touch or voice control – the choice is yours. Intuitively control a single MusicCast product or an entire whole-of-home system with ease using Alexa or Google Assistant and hear your home come alive.

*Availability of voice command control via Amazon Alexa and Google Assistant varies by region.

*A third party device is required to initiate voice commands.

Learn More >

Designed for your space

YPAO™-R.S.C./Multi-Point
Calibrates sound to your room by analyzing room acoustics and measuring speaker characteristics. This feature also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos®, DTS:X®.

YPAO (Yamaha Parametric room Acoustic Optimizer) with R.S.C (Reflected Sound Control) analyses the room acoustics with the included YPAO™ microphone to tune your system for the ultimate sound in your specific room. It employs R.S.C. to correct early reflections for studio-quality surround sound.

Learn More >

Compatible with Wireless Rear Speaker
Gives you the freedom to arrange your rear speakers wirelessly to suit your home décor.

Combine this AV receiver with the MusicCast 50 or MusicCast 20 wireless streaming speaker and enjoy the amazing convenience of creating a home theater with wireless surround sound. What’s more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your current living room into a special entertainment environment where you can fully enjoy movies and music.

Learn More >

Dynamic and Compelling Design

Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.

Yamaha's detail in design and craftmanship produces a work of visual and acoustic art.

The immaculate chassis construction further solidifies the alignment of stability in performance. A beautiful form that deepens the AVENTAGE uniqueness and continues to further enhance key acoustic authority.

Utilizing faithful reflections of tradition and incorporating fresh new design principles, the new look AVENTAGE exhibits engineering at its most innovative awe-inspiring best.

Learn More >

SCENE Buttons with the Ability to Preset Songs and Stations

There are four SCENE buttons. You can preset them for different inputs, as well as a sound field program, Music Enhancer, HDMI output and more. The inputs can be set to specific sources, such as an FM or Internet radio station, a station on a streaming service, a USB device or a song on a PC or NAS (network). Once you have set the buttons, simply press one on the main unit or the remote control to power on the receiver and hear your desired music. The buttons can be re-set at any time.

Learn More >

More Key Specs

7ch / 100W

HDMI 7 Inputs / 1 Output

Multi-Room Audio

Imagine sharing all the music you love throughout the home – no matter the format. From your favorite vinyl to AirPlay®, Bluetooth® to music streaming services* and even sound from your TV, MusicCast has it covered.

Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 384 kHz are supported.

*Music streaming service availability varies by region.

Airplay 2

Hey Siri. Play music in the kitchen and living room.

AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply utilize voice control and ask Siri fto assist.

Streaming Service

Explore a world of music with music streaming services* built-in. Synchronizing your playlists and tracks from your smart phone or computer to the AV receiver, music streaming services make it impossibly easy to either listen to your favorites or discover new music.

*Music streaming service availability varies by region.

eARC

Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC – available in the industry-leading AV receivers from Yamaha.

eARC delivers full-resolution, multi-channel audio formats such as Dolby® TrueHD and DTS-HD® through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favorite movies and moments.

Zone 2

Featuring Zone2 compatible speaker terminals, this system can send the same (or even different) AV contents playing in the main room for playback in another room. For example, if you have speakers installed in your bedroom or kitchen, you can go to that other room and enjoy listening to the same or different main room content.

Phono

This AV receiver provides dedicated phono input terminals, letting you connect a turntable and enjoy music from your vinyl collection.

AV Receiver
Amplifier Section	Model	RX-A2A	RX-V6A	RX-V4A
	Channel	7.2	7.2	5.2
	Rated Output Power (1kHz, 1ch driven)	125 W (8 ohms, 0.9% THD)	125 W (8 ohms, 0.9% THD)	115 W (6 ohms, 0.9% THD)
	Rated Output Power (20Hz-20kHz, 2ch driven)	100 W (8 ohms, 0.06% THD)	100 W (8 ohms, 0.06% THD)	80 W (6 ohms, 0.06% THD)
	Maximum Effective Output Power (1kHz, 1ch driven)	150 W (8 ohms, 10% THD)	150 W (8 ohms, 10% THD)	145 W (6 ohms, 10% THD)
	High Slew Rate Amplifier	Yes	Yes	Yes
Surround Sound Processing	Surround:AI	N/A	N/A	N/A
	CINEMA DSP	Yes	Yes	Yes
	DSP Programs	17	17	17
	Dialog Level Adjustment	Yes	Yes	Yes
	Virtual Presence Speaker	Yes	Yes	Yes
	Virtual Surround Back Speaker	Yes	Yes	N/A
	Dialogue Lift	Yes	Yes	N/A
	SILENT CINEMA / Virtual CINEMA DSP	Yes	Yes	Yes
	Dolby Atmos	Yes	Yes	N/A
	Dolby Atmos Height Virturalizer	Yes (via future update)	Yes (via future update)	N/A
	Dolby TrueHD	Yes	Yes	Yes
	Dolby Digital Plus	Yes	Yes	Yes
	Dolby Surround	Yes	Yes	N/A
	DTS:X	Yes	Yes	N/A
	DTS-HD Master Audio	Yes	Yes	Yes
Audio Features	File Format	MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz	MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz	MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz
	Pure Direct	Yes	Yes	Yes
	Compressed Music Enhancer	Yes	Yes	Yes
	High-resolution Music Enhancer	N/A	N/A	N/A
	YPAO multi-point measurement	Yes	Yes	N/A
	YPAO Volume	Yes	Yes	N/A
	Adaptive DRC (Dynamic Range Control)	Yes	Yes	Yes
	Initial Volume & Maximum Volume Setting	Yes	Yes	Yes
	A.R.T. Wedge	Yes	N/A	N/A
	Bi-amp capability	Yes	Yes	Yes
	Audio Delay	Yes (0-500 ms)	Yes (0-500 ms)	Yes (0-500 ms)
	DA Converter	384 kHz / 32-bit BB PCM5102A	384 kHz / 32-bit BB PCM5102A	384 kHz / 32-bit BB PCM5101A
Video Features	HDMI eARC	Yes	Yes	Yes
	HDMI Audio Return Channel	Yes	Yes	Yes
	HDMI Pass-through	8K60B, 4K120AB (via future update)*HDMI 1-3	8K60B, 4K120AB (via future update)*HDMI1-3	8K60B, 4K120AB (via future update)
	HDMI Up-scaling	Yes up to 4K	Yes up to 4K	Yes up to 4K
	HDMI Up-conversion	N/A	N/A	N/A
	Dolby Vision	Yes	Yes	Yes
	HDR 10+	Yes (via future update)	Yes (via future update)	Yes (via future update)
	VRR/ALLM/QMS/QFT	Yes (via future update)	Yes (via future update)	Yes (via future update)
	Video adjustment	N/A	N/A	N/A
Connectivity	MusicCast Surround	Yes	Yes	Yes
	HDMI Input/Output	7 / 1	7 / 1	4 / 1
	HDMI CEC	Yes	Yes	Yes
	USB Input	Yes	Yes	Yes
	Network Port	Yes	Yes	Yes
	Wi-Fi	Yes (2.4 / 5 GHz)	Yes (2.4 / 5 GHz)	Yes (2.4 / 5 GHz)
	AirPlay 2	Yes	Yes	Yes
	Bluetooth	Yes (SBC / AAC)	Yes (SBC / AAC)	Yes (SBC / AAC)
	Front AV Input	USB	USB	USB
	Digital Audio Input/Output: Optical	1 / 0	1 / 0	1 / 0
	Digital Audio Input/Output: Coaxial	1 / 0	1 / 0	1 / 0
	Analog Audio Input/Output	4 / 0	4 / 0	3 / 0
	Phono Input	Yes	Yes	N/A
	XLR Terminal	N/A	N/A	N/A
	Component Video Input/Output	N/A	N/A	N/A
	Composite Video Input/Output	N/A	N/A	N/A
	Preout	2.2-ch	2.2-ch	0.2-ch
	Headphone Output	1	1	1
Tuner Section	FM/AM Tuner	Yes (Availability varies by region.)	Yes (Availability varies by region.)	Yes (Availability varies by region.)
Tuner Section	DAB Tuner	Yes (Availability varies by region.)	Yes (Availability varies by region.)	Yes (Availability varies by region.)
User Interface	On-screen display	Graphical User Interface	Graphical User Interface	Graphical User Interface
	SCENE	Yes (8 sets)	Yes (8 sets)	Yes (4 sets)
	App Control	Yes (iPhone / iPad / Android phone / tablet)	Yes (iPhone / iPad / Android phone / tablet)	Yes (iPhone / iPad / Android phone / tablet)
	Web Browser Control	Yes	Yes	N/A
	Remote Control Unit	Yes	Yes	Yes
Zone Control	Zone 2 Audio Output	Preout	Preout	N/A
	Zone 3 Audio Output	N/A	N/A	N/A
	Zone 4 Audio Output	N/A	N/A	N/A
	Powered Zone	Zone 2	Zone 2	N/A
	Zone Video Output	N/A	N/A	N/A
	Zone B Output	N/A	N/A	N/A
	Zone GUI	N/A	N/A	N/A
	RS-232C Interface	N/A	N/A	N/A
	+12V Trigger Output	1	1	N/A
	Remote (IR) Input/Output	1 / 1	N/A	N/A
	Party Mode	Yes	Yes	N/A
General	Standby Power Consumption (IR only)	0.1 W	0.1 W	0.1 W
	Auto Power Standby	Yes	Yes	Yes
	ECO mode	Yes	Yes	Yes
	Dimensions (W x H x D)	435 W x 171 H x 372 D mm (with antenna up:435 W x 245 H x 372 D mm)17-1/8"W x 6-3/4"H x 14-5/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-5/8"D)	435 W x 171 H x 377 D mm (with antenna up:435W x 245H x 377D mm);17-1/8"W x 6-3/4"H x 14-7/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-7/8"D)	435 W x 171H x 377D mm (with antenna up:435 W x 245 H x 377 D mm);17-1/8"W x 6-3/4"H x 14-7/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-7/8"D)
	Weight	10.2 kg; 22.5 lbs.	9.8 kg; 21.6 lbs.	8.8 kg; 19.4 lbs.
